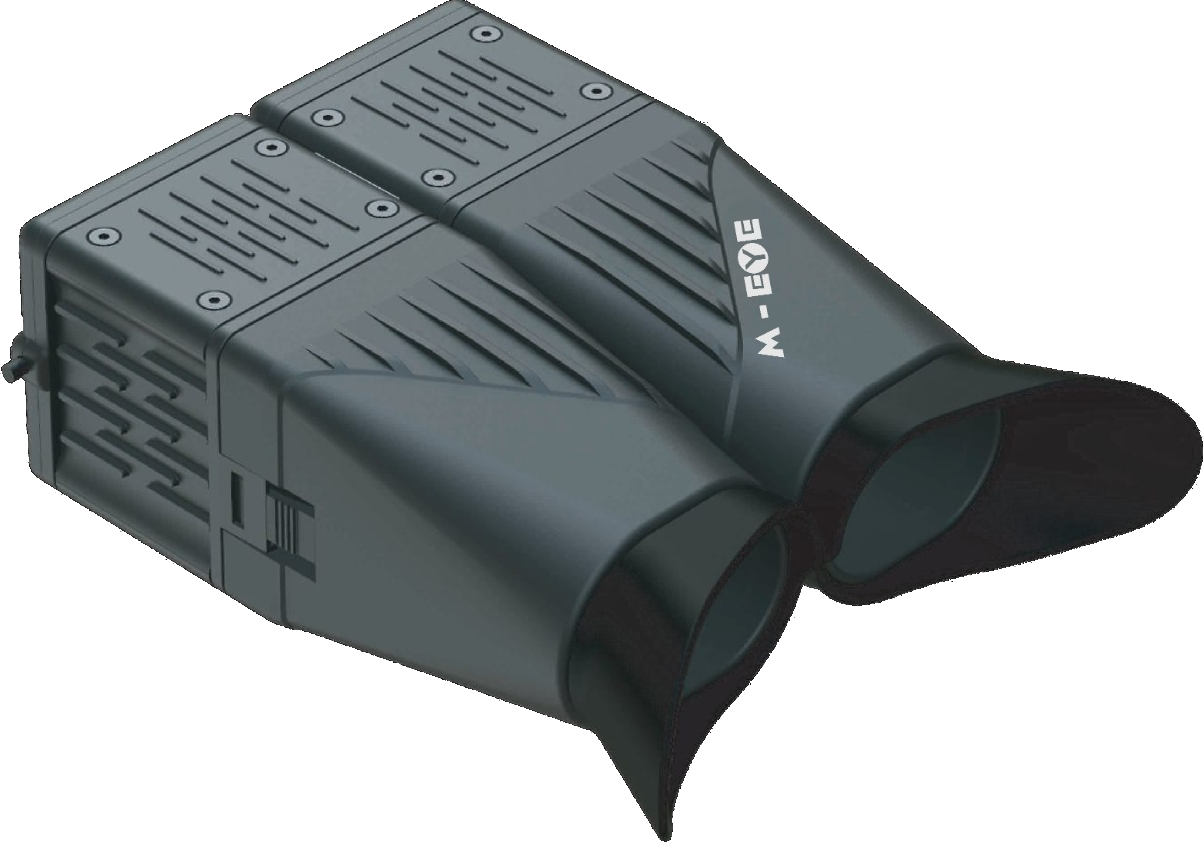

M-EYE is a rugged, portable and easy-to-use dual-iris capture device that can simultaneously capture both irises with higher accuracy and greater speed. The innovative dual iris scanner is packed with compelling features that make the device suitable for diverse biometric enrollment and identification applications.

At a Glance

• IRIS Sensor

  Parameters	Specification
  Simultaneous Capture	Dual IRIS Capture
  IRIS Diameter	> 210 Pixel
  Spatial Resolution	> 60 % @ 4.0 LP/mm
  Pixel Resolution	> 20 Pixel/mm
  Image Margins	Left & Right >= 0.5x IRIS Diameter, Top & Bottom >= 0.25x IRIS Diameter
  Pixel Depth	8 Bits/Pixel (256 Gray Level)
  Imaging Wavelength	700 - 900 nm
  Frame Rate	>= 10 Frames/Sec
  Scan Type	Progressive
  Sensor SNR	> 36 dB
  Capture Mode	Auto Capture with Built-in Quality Check
  Illumination	Near Infra Red (NIR)
  Capture Distance	> 100mm from the Front of Camera mirror
  Capture Volume (WxHxD)	30 x 22.5 x 15 mm
  Exposure Time	< 33ms



• Hardware

  Parameters	Specification
  Interface	USB2.0 High Speed (USB-IF Certified)
  Operating Voltage	5V +/- 5%
  Current Consumption	Operating :- < 375 mA (Max) , Stand By :- < 160 mA (Max)
  Operating Temperature	0 to 50 °C
  Operating Humidity	10 - 90% RH, Non-Condensing
  ESD Protection	+/-4kV (Contact Discharge), +/-8kV (Air Discharge)
  Device Dimension	185 x 145 x 62 mm
  Device Weight	0.41Kg



• Platform

  Parameters	Specification
  Operating System	Windows x86 and x64, Linux



• Certifications

  Parameters	Specification
  Biometric Data Interchange Format	ISO 19794-6 for IRIS Image, ISO 29794-6 for image quality
  EMI / EMC Compliance	CE & FCC Part 15B class B
  Environmental, Health and Safety	ROHS
  Safety	Exempt Group per IEC 62471:2006-07, IS13252 (Part 1)
  Ingress Protection Rating	IP65
  Device Driver	WHQL Certified
